S200 Dust Collector

Key Features
  • Most powerful filter of its size on the market
  • Constant cleaning of filter bags
  • High efficiency self-cleaning fan
  • Reverse inclined impeller
  • Quiet, powerful operation
  • Competitively priced
  • Modular in design

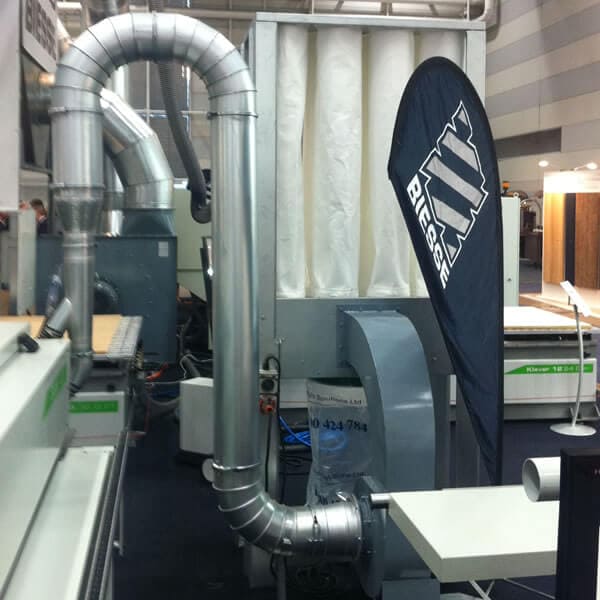

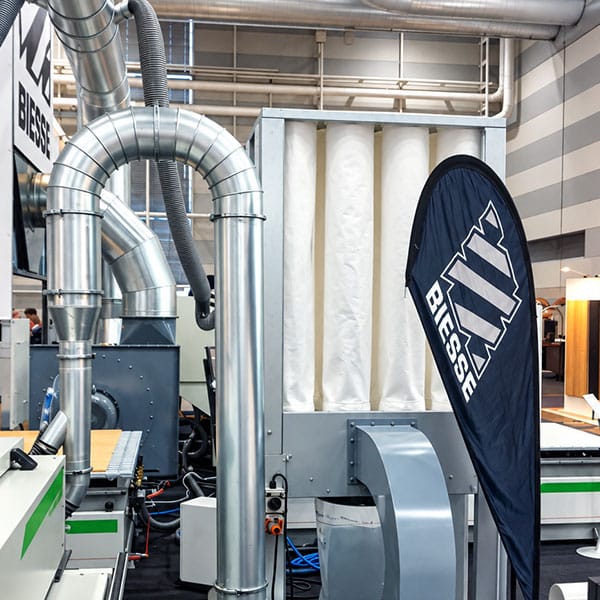

The S200 and T-series are the preferred filtration system for all major wood working suppliers in Australia as recently demonstrated at AWISA where the Airtight Solution filters were the chosen solution to keep the show room floors dust free.

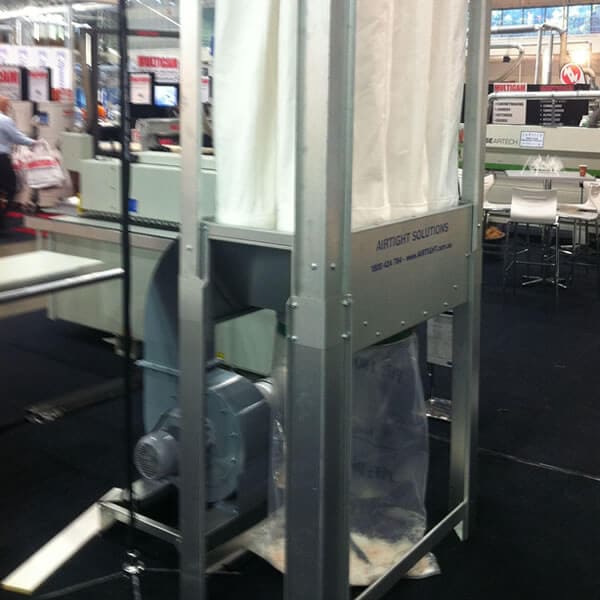

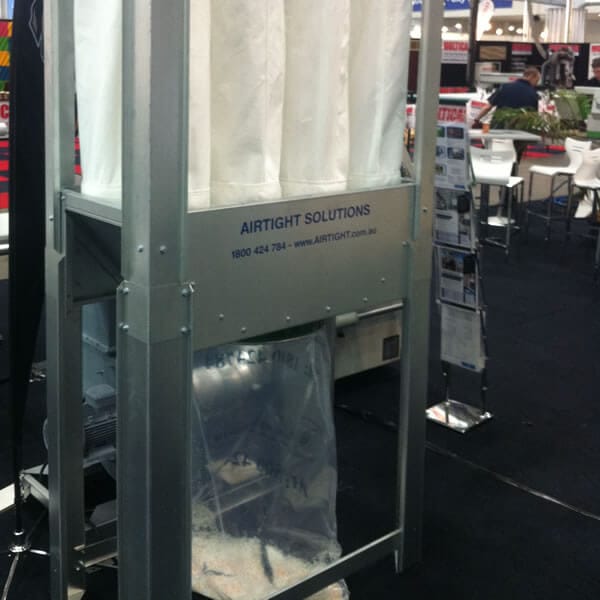

The S200 uses a bottom entry design, dust laden air enters the side of the dust collector, hits a baffle and is directed down into the collection bags at the bottom.

The powerful 2.2kW fan that comes standard with the S200 is a 3mm thick steel casing coupled with a self-cleaning backwards inclined fan runner giving you high performance and high efficiency.

The S200 has a capacity of 2,500m3/hr dependent on dust type and dust loading. For a typical joinery/cabinet maker application this may equate to 1-2 machines.

Common applications:

  • Timber & joinery
  • Composite materials
  • Sanders (w. special membrane coated bags)
  • Plastics
  • Chemicals
  • + Many more

Call Airtight Solutions today for more information and assistance on selecting the right dust collector for your application.

Model AIRTIGHT S200 2.2kw
Cleaning Constant bag flush
Capacity 2,500 m3/h @ 1,800 Pa (2980rpm)
Filter Area 8 x Needlefelt filter bags ~ 8 m2 filter area
Fan High efficiency, materials handling fan, heavy duty plate Self cleaning Reverse incline impeller Duct inlet: 200mm
Motor High efficiency 2.2KW, 2980 rpm
Motor Starter Motor Start/Stop Box included

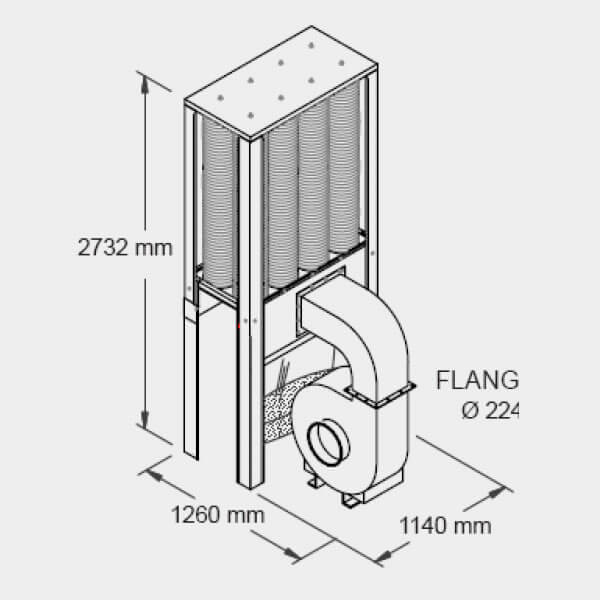

Dimensions ~1,260 (D) x 1,140 W x 2,732 H
<!–S200–>

The T-Series dust collector systems are available in several sizes; from 2.2kW up to larger 15kW systems with variable speed drives and rotary valves.

Examples of other popular T-Series models:

Quick Facts Technical Parameters
T500
  • 15m3, 16 needle-felt bags
  • Dimensions: 1930W, 1270D, 2745H
  • Powerful & high performance
  • Fan 2880rpm, 4kw, 250 Ø inlet + incl. starter box
  • 3 plastic waste bags
  • Typical capacity: 7500 m3/h (dependant on dust load & system pressure)
T750
  • 22.5m3, 24 needle-felt bags
  • Dimensions: 2515W, 1270D, 2445H
  • Powerful & high performance
  • Fan 2880rpm, 7.5kw 315 Ø inlet + incl. starter box
  • 3 plastic waste bags
  • Typical capacity: 7,500 m3/h (dependant on dust load & system pressure)
T1000
  • 31-40m3, 32 needle-felt bags
  • Dimensions: 3450W, 1270D, 3300H
  • Powerful & high performance
  • Fan 2880, 11-15kW, 400 Ø inlet + incl. starter box
  • Variable Speed Drive (maximum power at lowest running cost!)
  • Typical capacity 10,000m3/h (dependent of dust load and system pressure)

The S200 dust collectors are the most powerful extraction system in the market of their size and are the leaders within it market segment. The S200’s reputation and popularity is underpinned by its powerful, quiet and continuous performance. This system is the proven performer in countless timber, joinery, composite and other applications

Optional extras available including:

  • Outdoor Kit
